Virtual machinesFirewall and security groups

Firewall and security groups

On VM WAN you add your own firewall rules or insert security groups created under Datacenter → Security groups.

Before you begin

  • VM with a WAN (net0) interface.
  • Admin or Superadmin access to the project.

Steps — rule on the VM

  1. Open VM → Firewall.
  2. Set Global Status to On, Policy In to DROP, and click Apply if the firewall is off.
  3. Click Add rule.
  4. Fill in the Create firewall rule dialog (see below) and click Add.
  5. Check rule order in the table — within each direction, rules apply top to bottom.

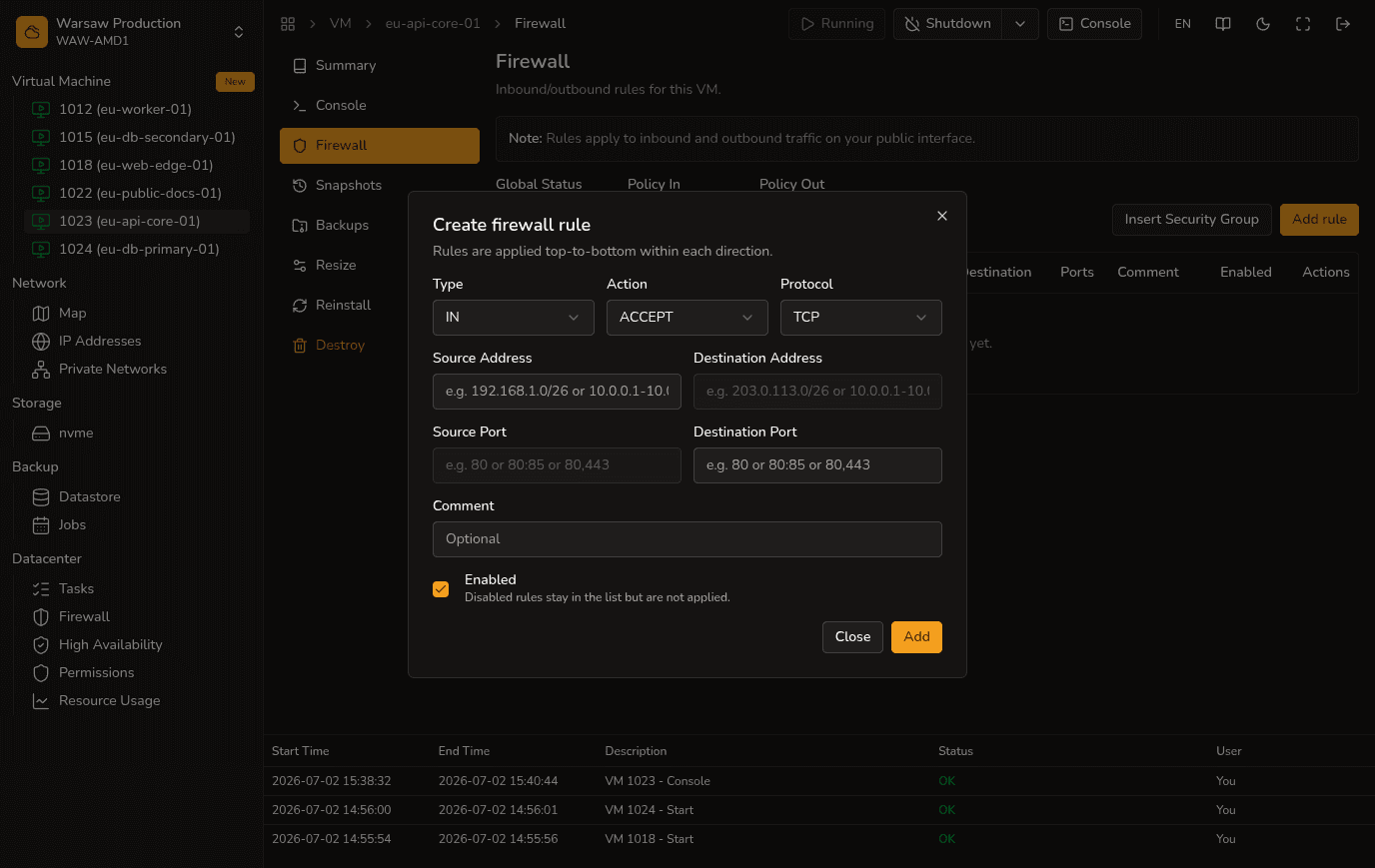

Create firewall rule — modal

Fields in Create firewall rule

  • Type — IN (traffic to the VM) or OUT (traffic from the VM).
  • Action — ACCEPT (allow) or DROP (deny).
  • Protocol — TCP, UDP, or ICMP.
  • Source Address — sender address or CIDR; active for IN, greyed out for OUT.
  • Destination Address — recipient address or CIDR; active for OUT, greyed out for IN.
  • Source Port — source port (e.g. 80, 80:85, 80,443); usually empty for IN, fill in for OUT.
  • Destination Port — destination port; fill in for IN (e.g. 22 for SSH), usually empty for OUT.
  • Comment — optional note.
  • Enabled — disabled rules stay in the list but are not applied.

Security groups

To reuse the same rules on many VMs, create a security group under Security groups, then on the VM firewall click Insert Security Group and choose the group.

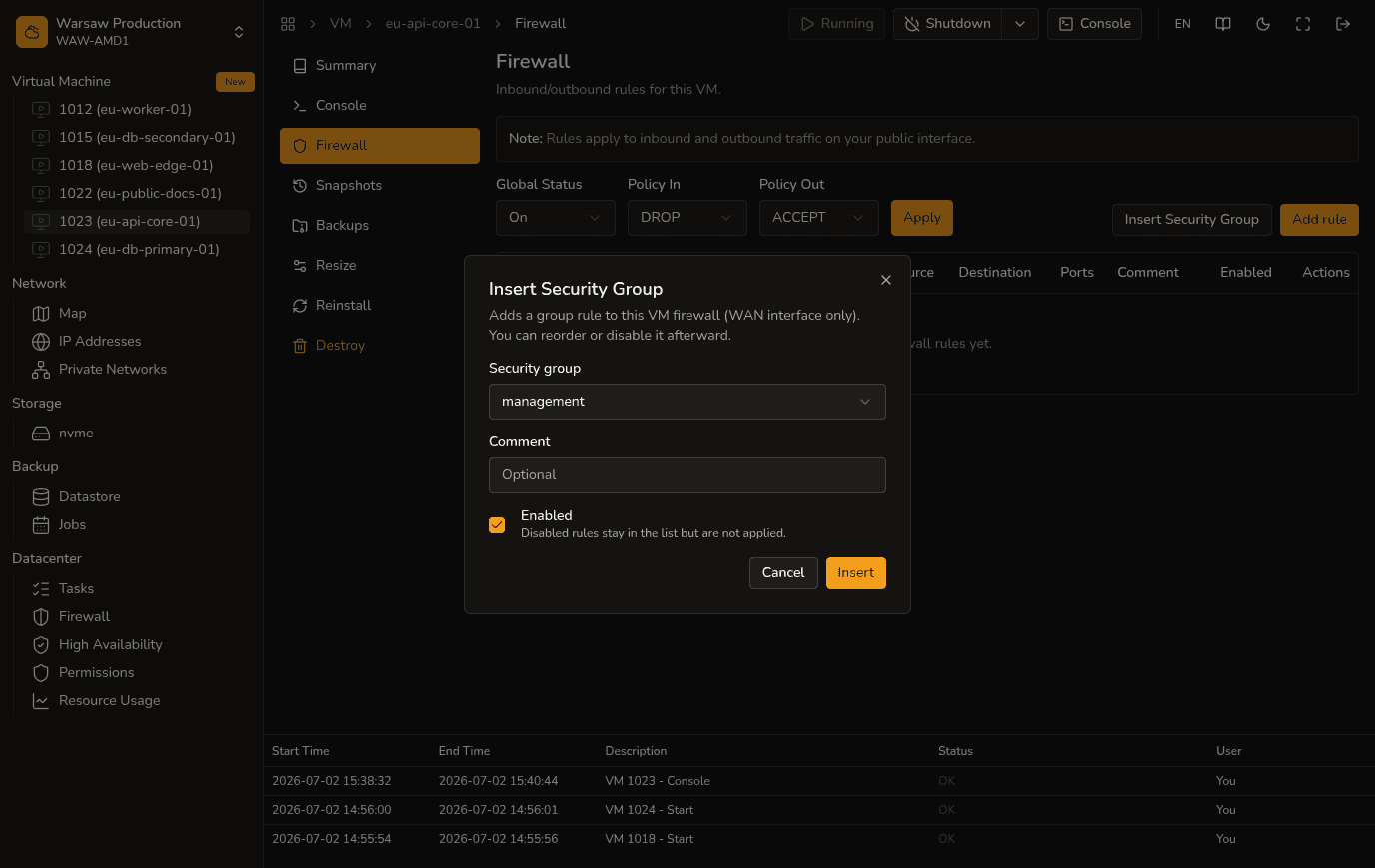

Insert Security Group on VM Firewall

Watch out

  • Portal VM firewall applies to WAN (net0) only. LAN interfaces are not filtered by this firewall.
  • CIDR in rules is limited to /26 maximum.
